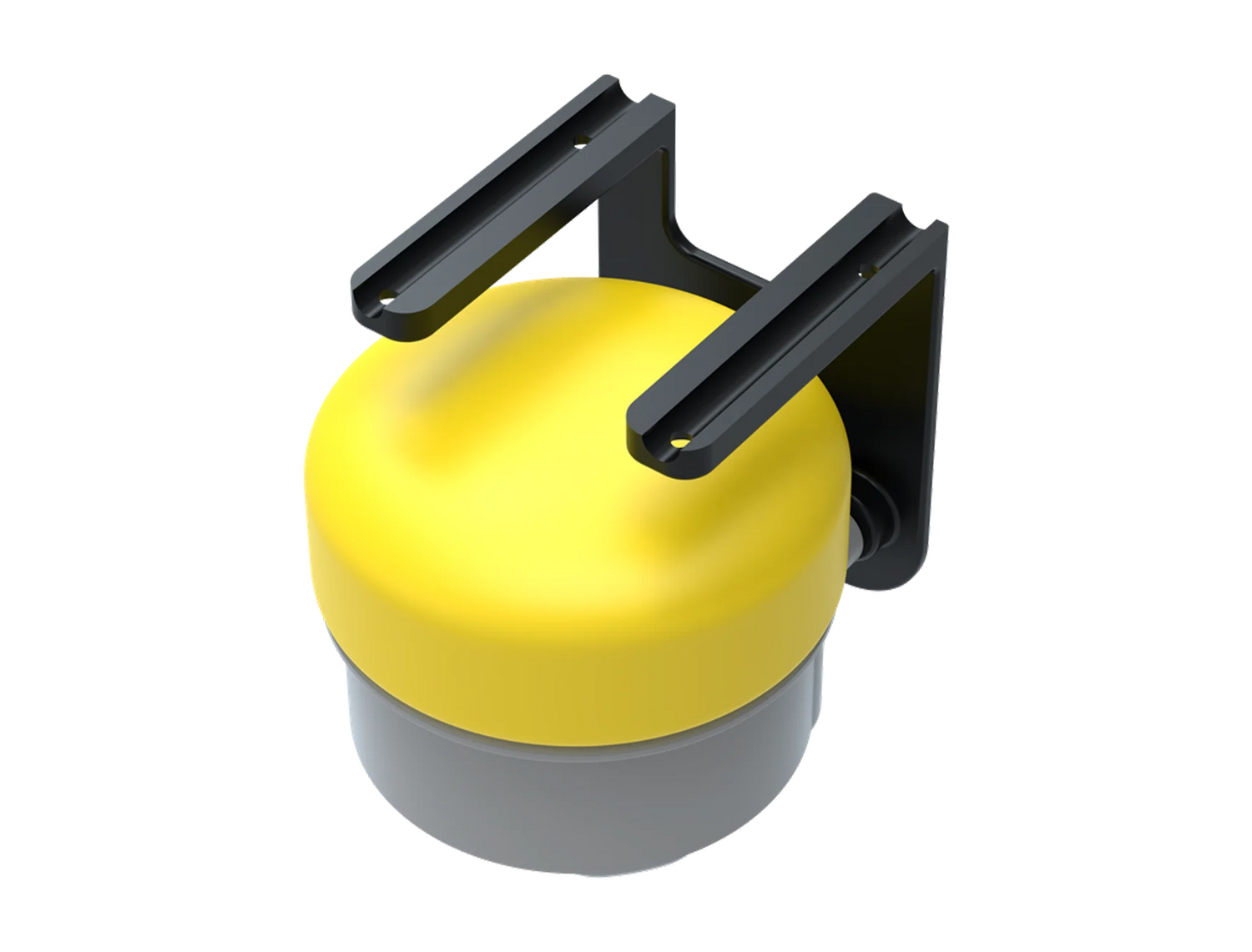

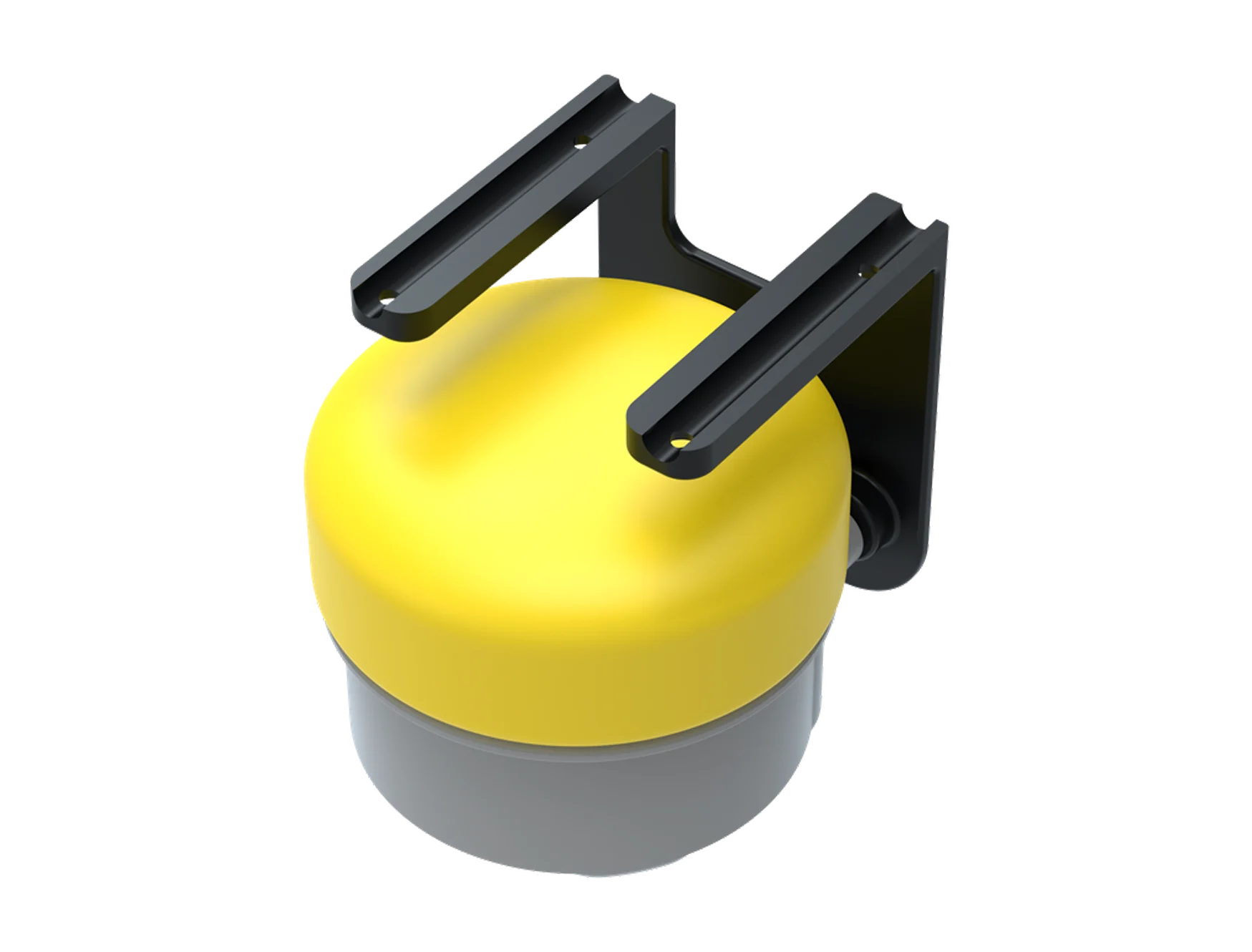

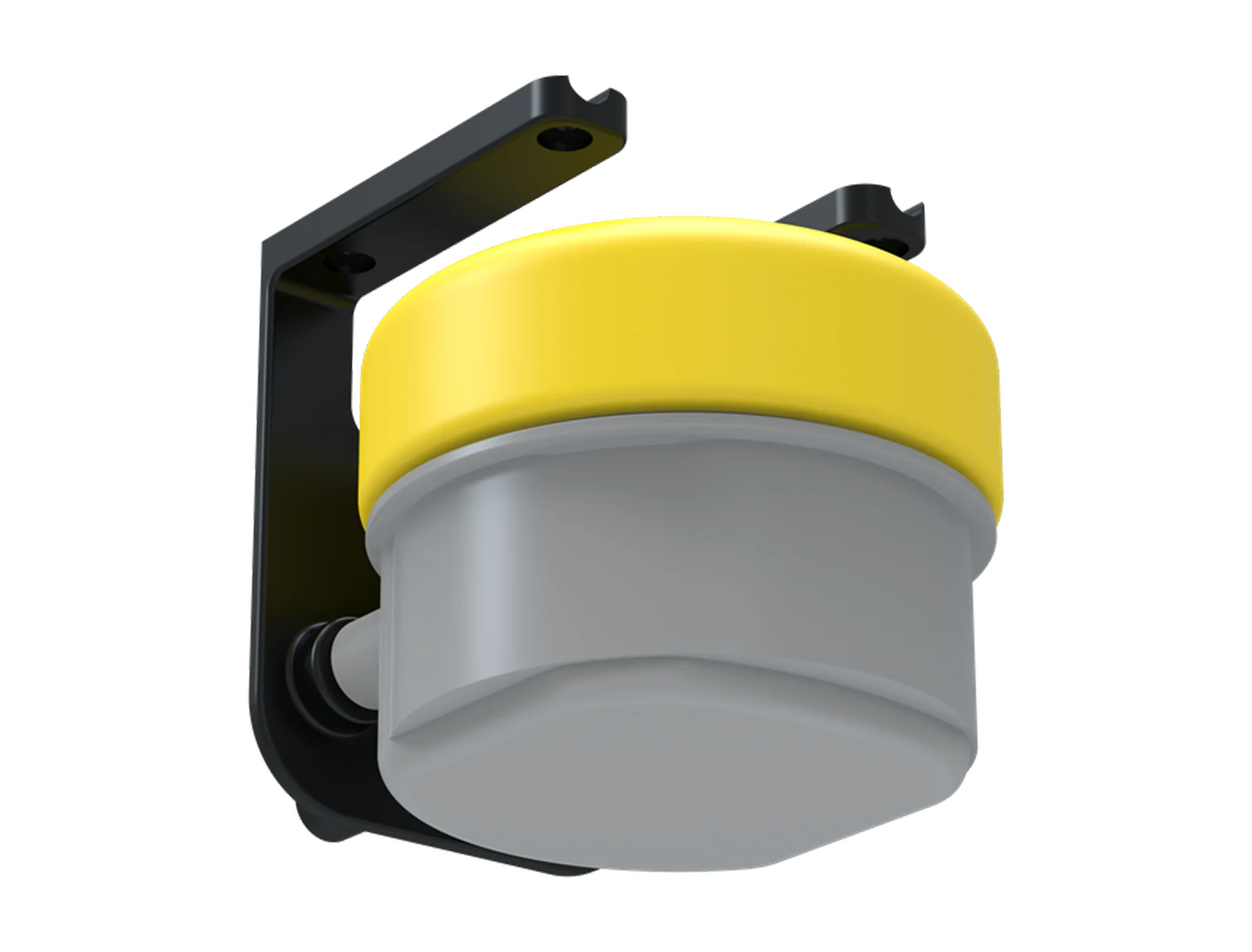

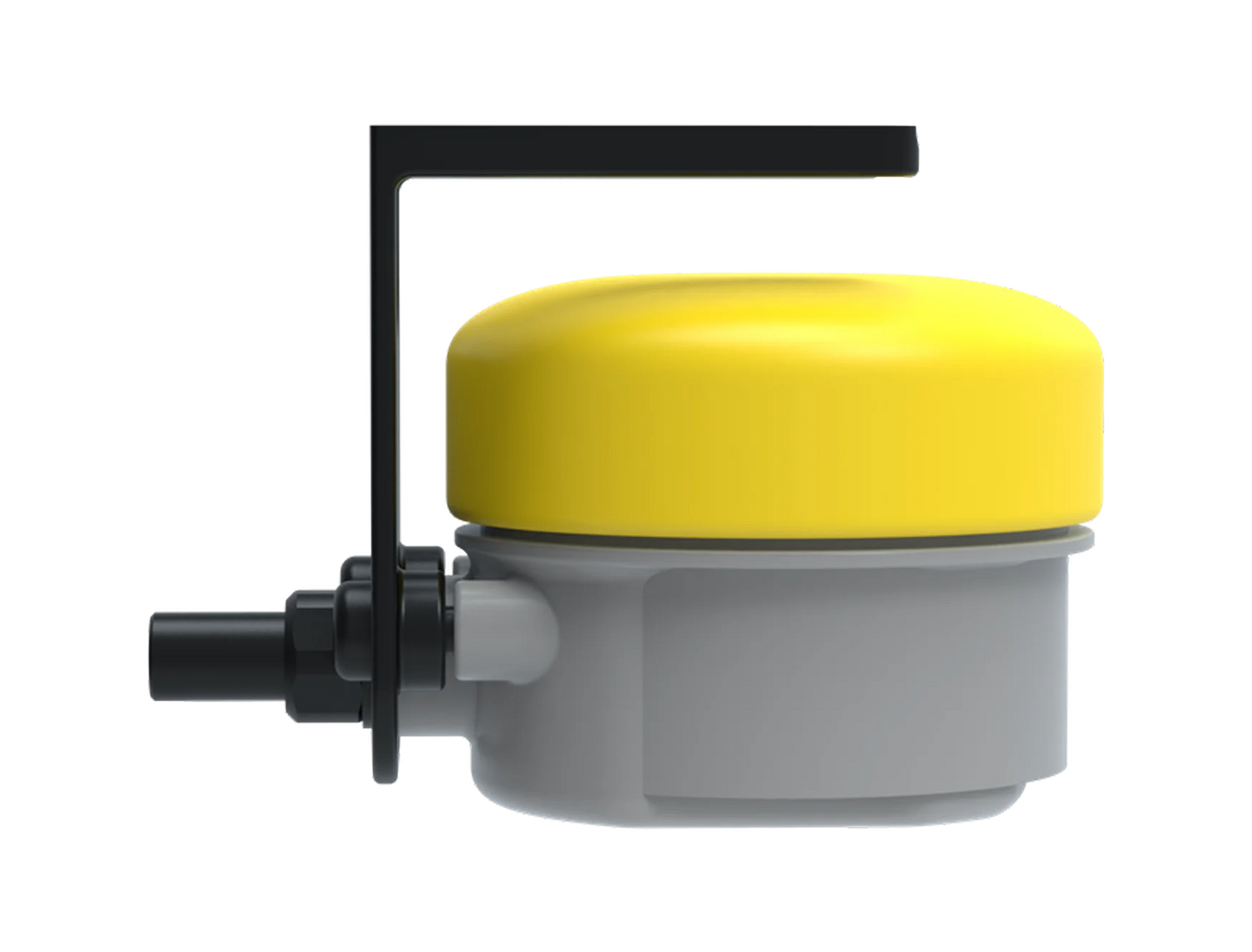

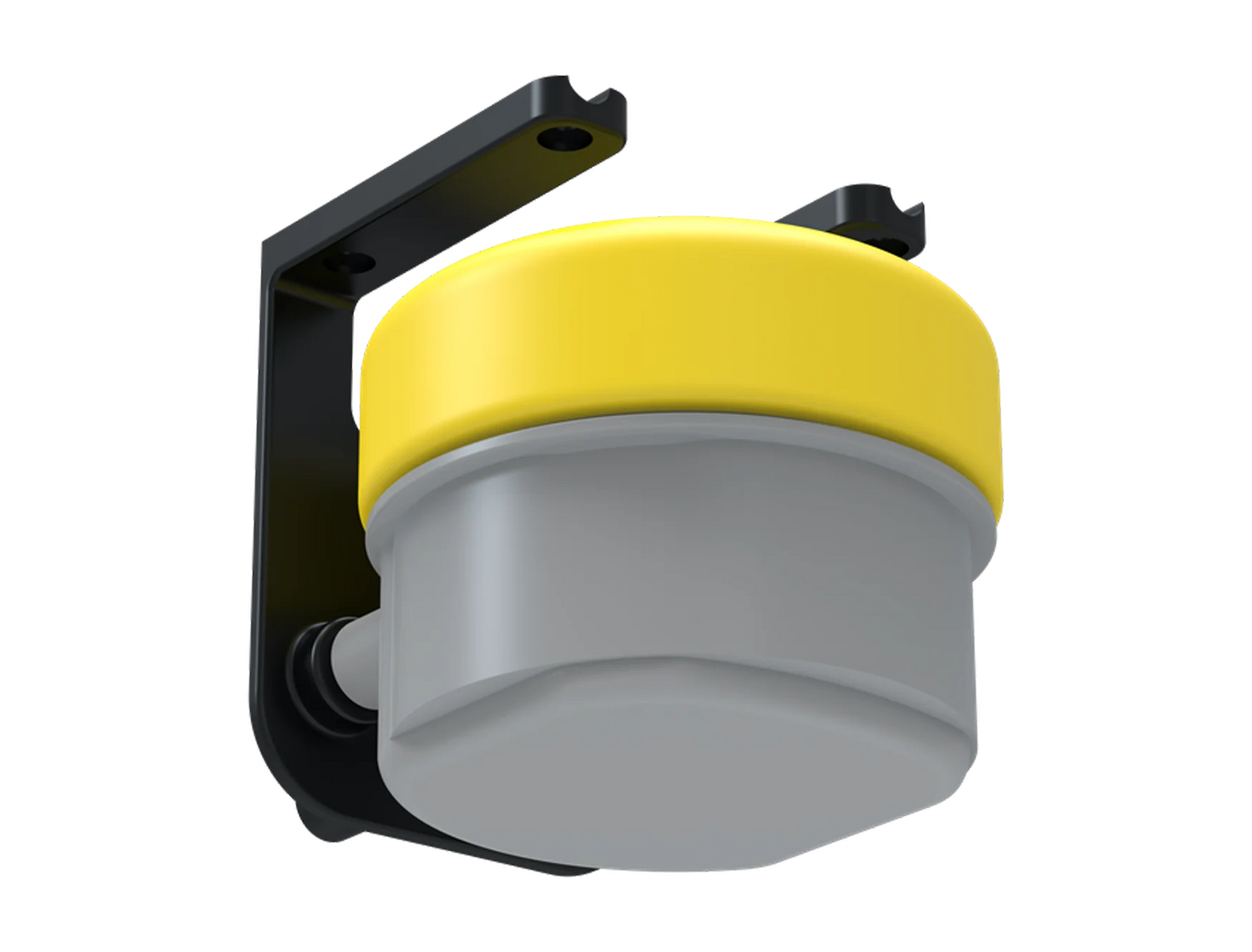

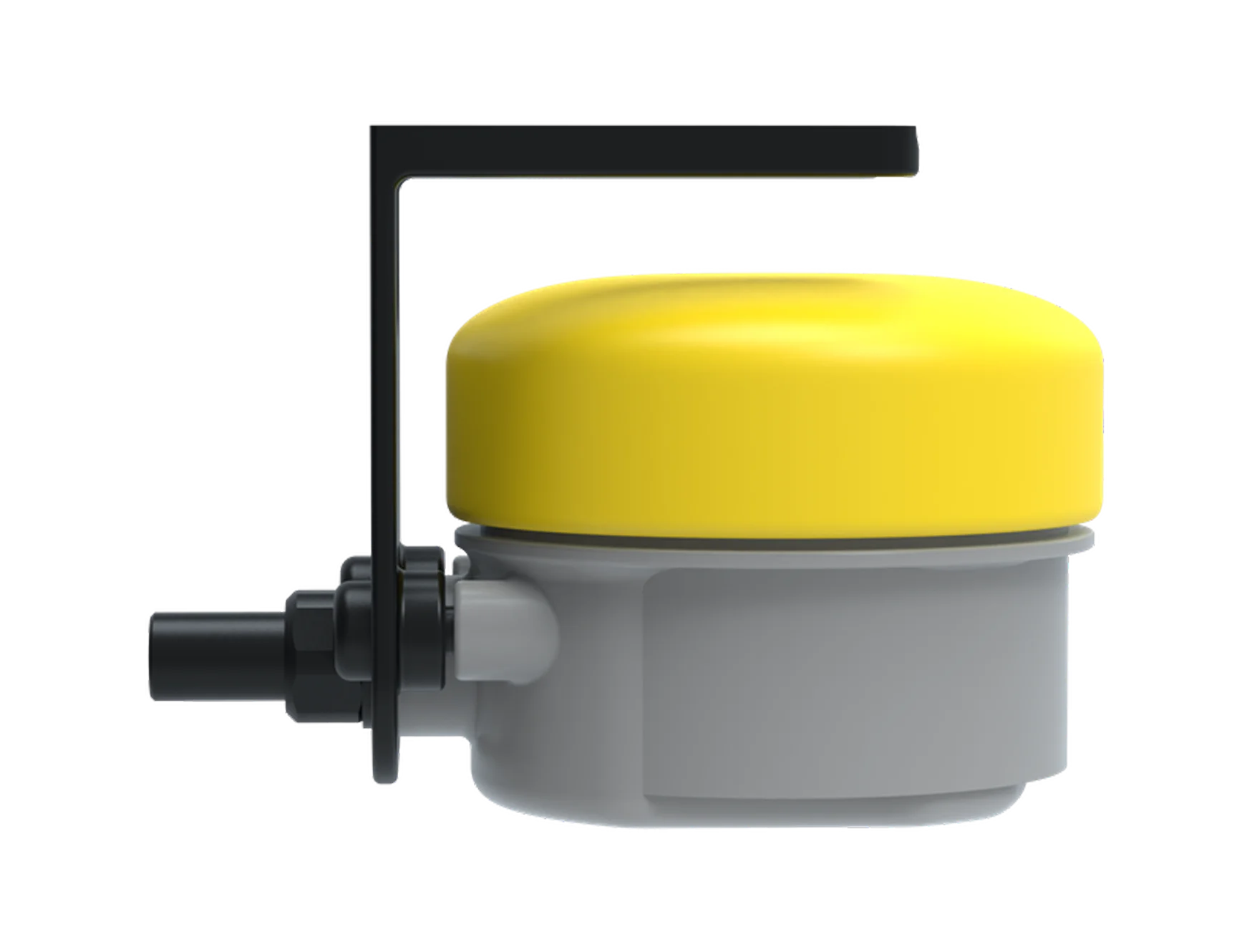

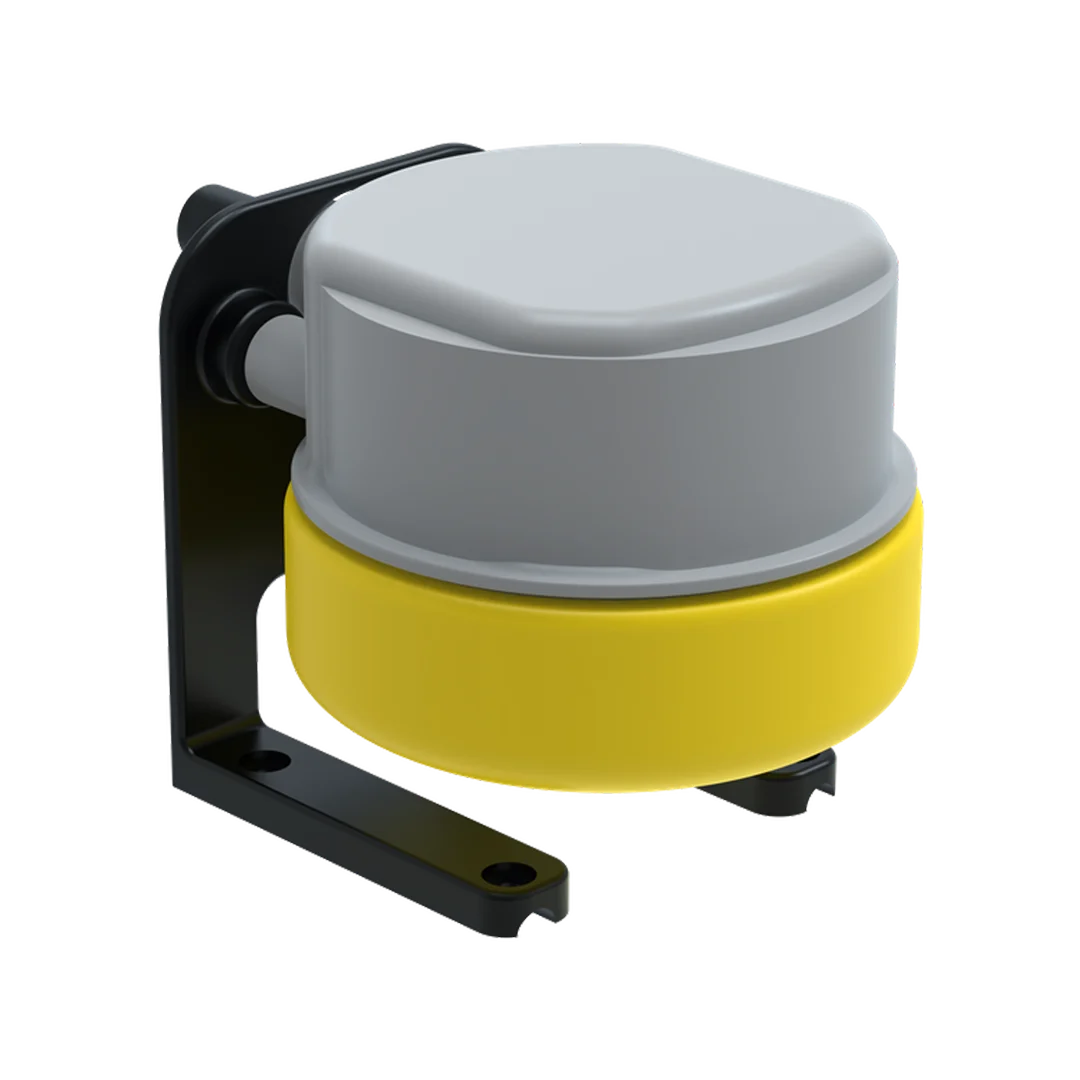

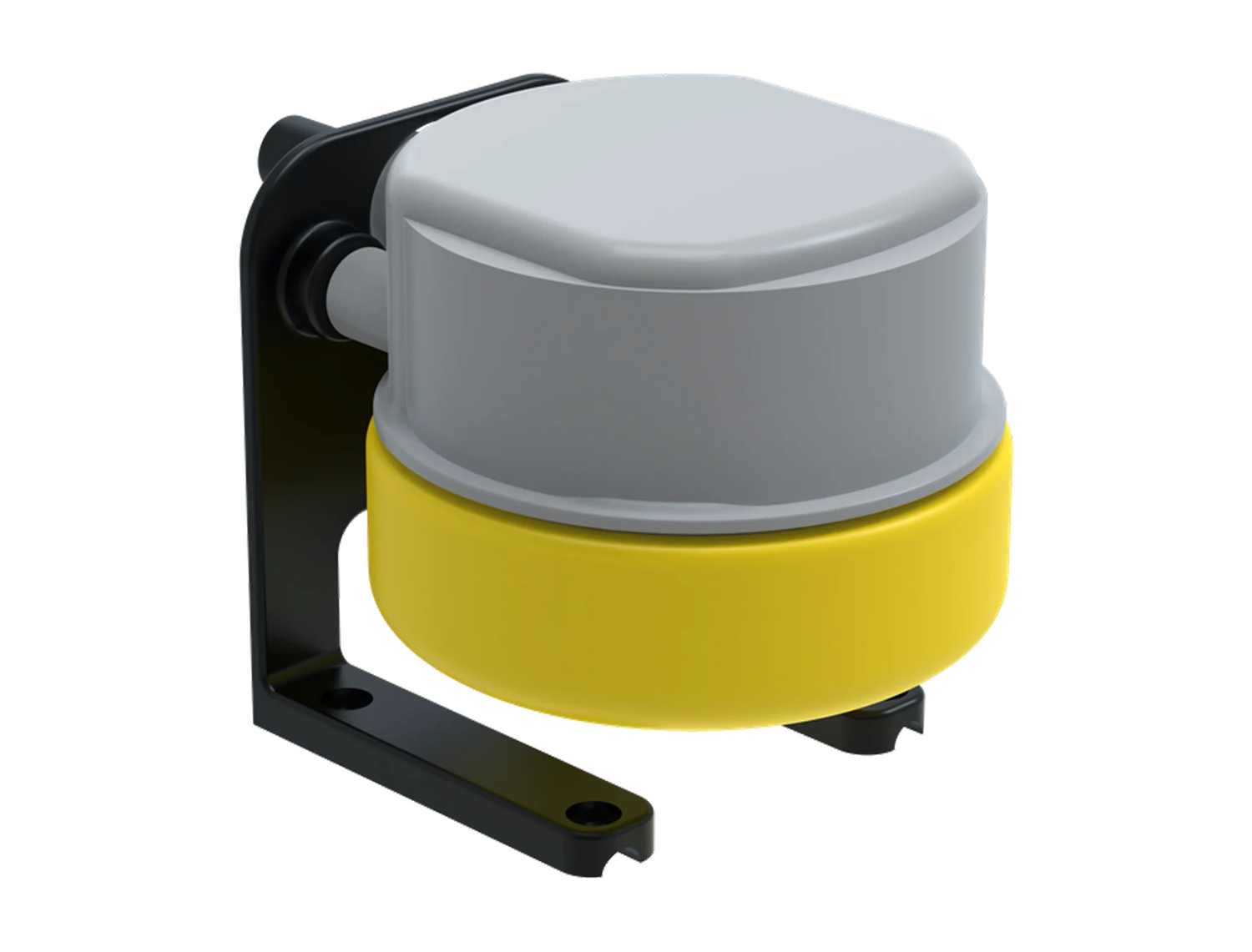

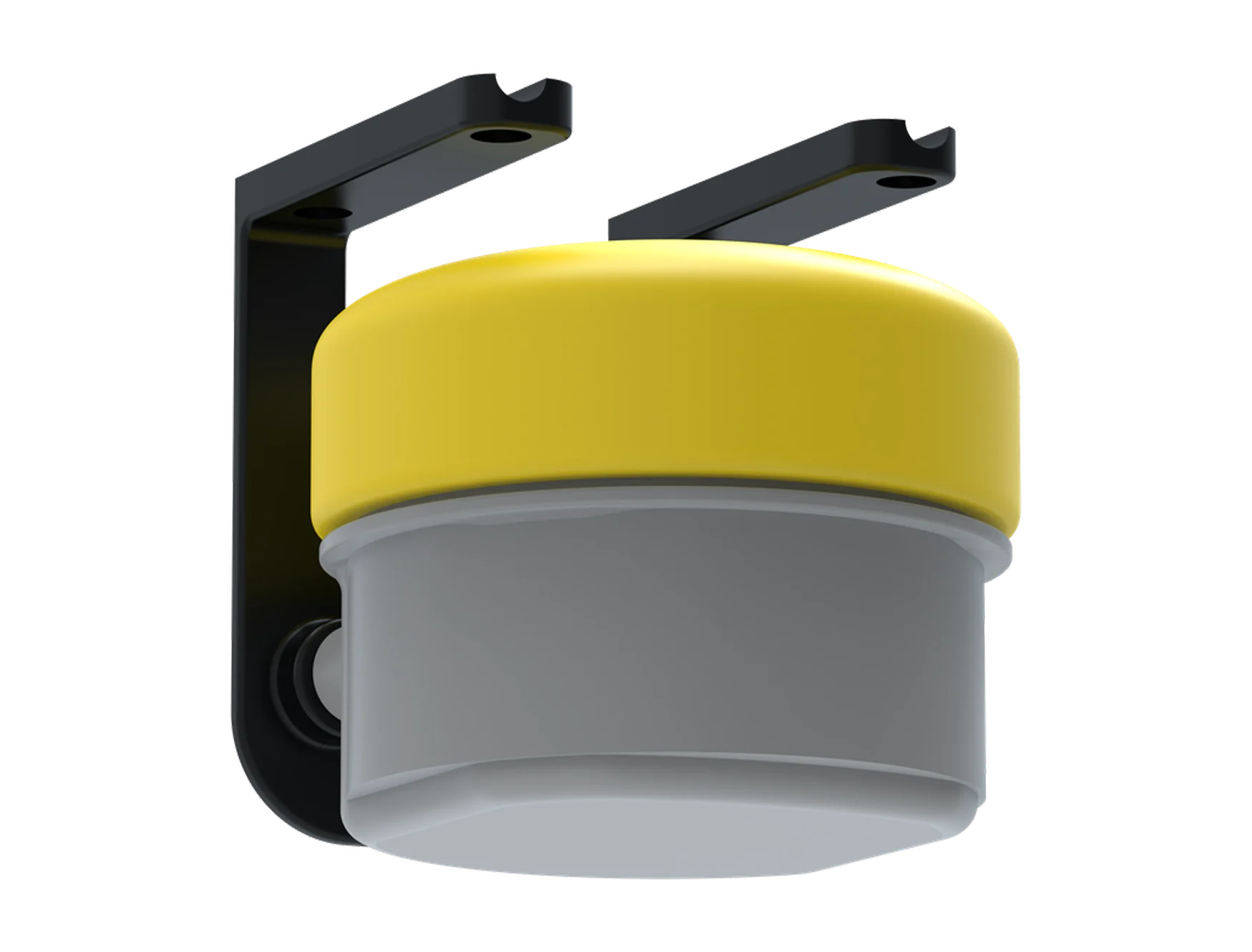

CHASING Distance Lock Sonar

$1,499.00
Shipping calculated at checkout.

In stock

  • CHASING M2 S
  • CHASING M2 PRO
  • CHASING M2 PRO MAX

Specifications

Application: Underwater collision avoidance and underwater fixed range
Range: Range
Blind Spot: Less than 20 cm
Measurement Accuracy: ±25 mm
Resolution: 1 mm
Launch Angle: 13° ± 2°, 26° between axis-1 and axis-2
Power Supply: 10.8 VDC – 26.4 VDC (measurement range may vary depending on voltage)
Storage Temperature: -20℃ – 60℃ (non-frozen environment)
Probe Installation: Fixed installation
Protection Level: IP68

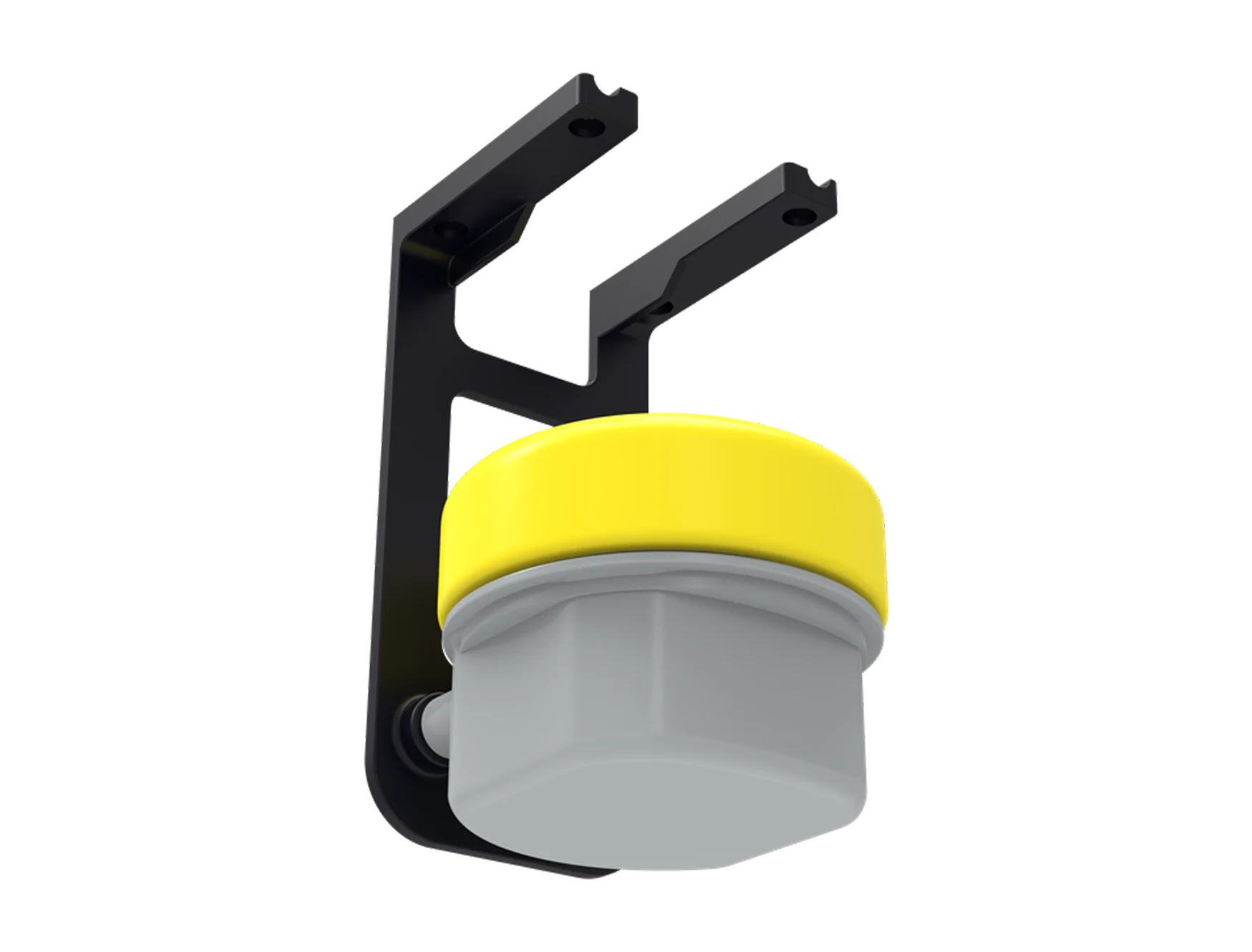

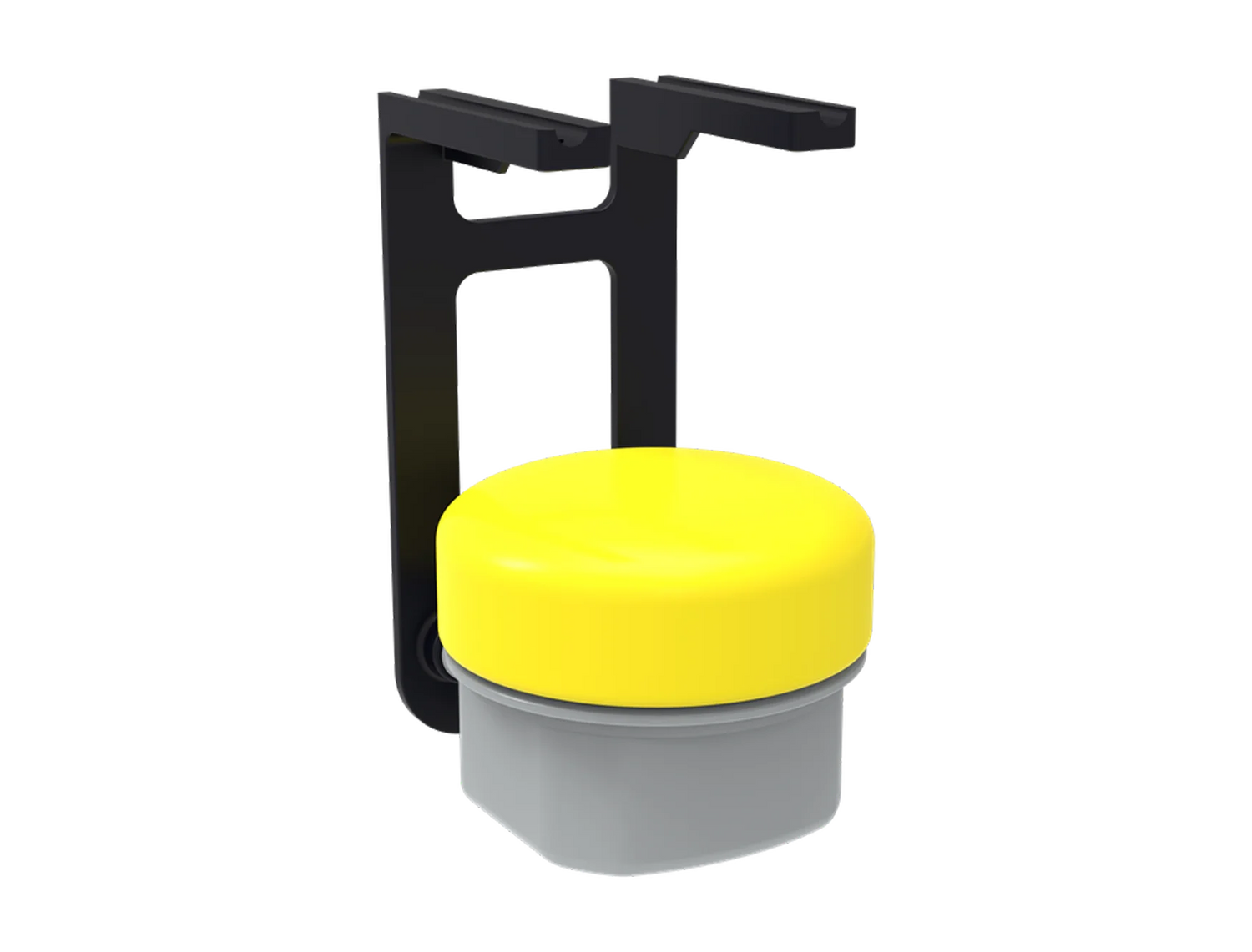

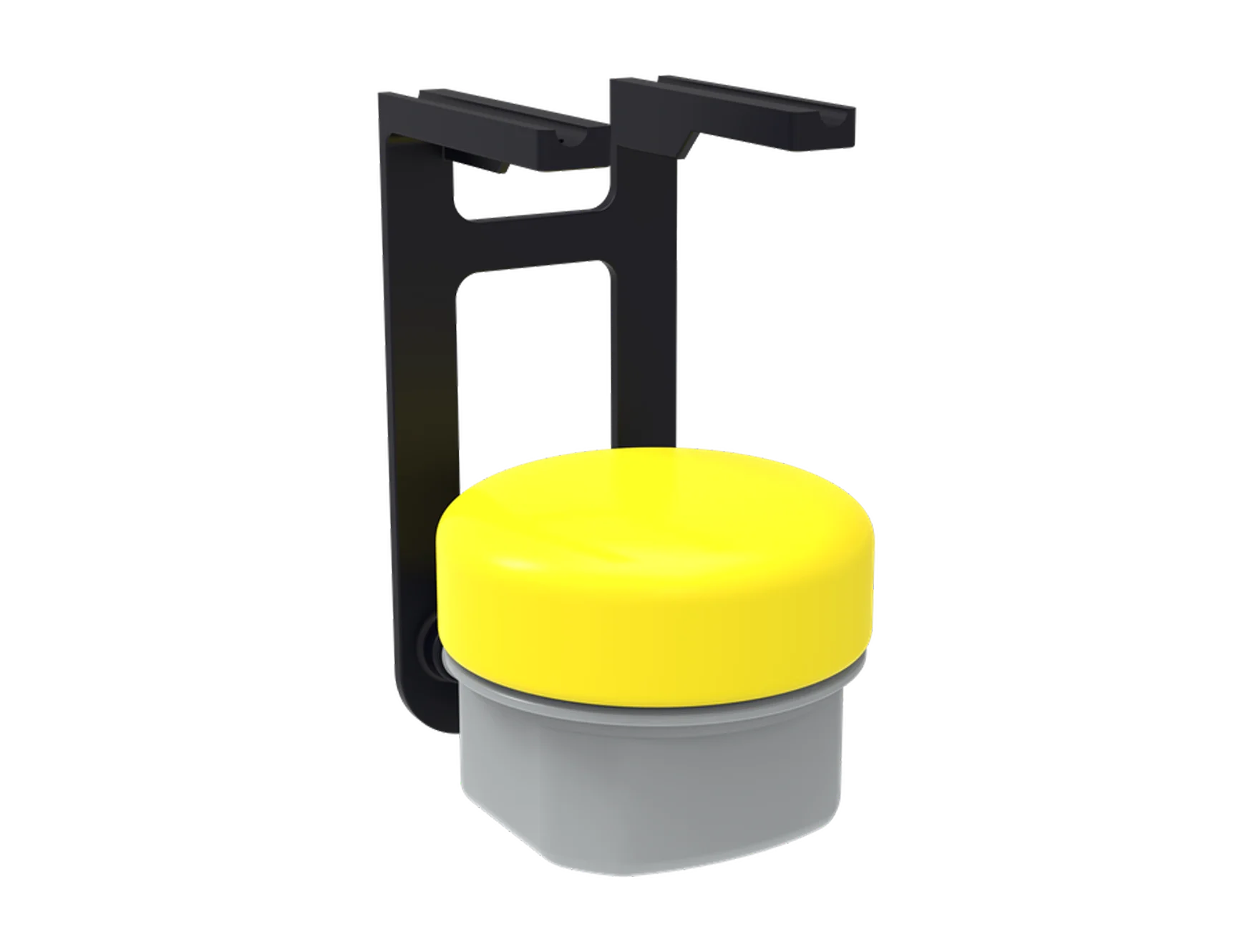

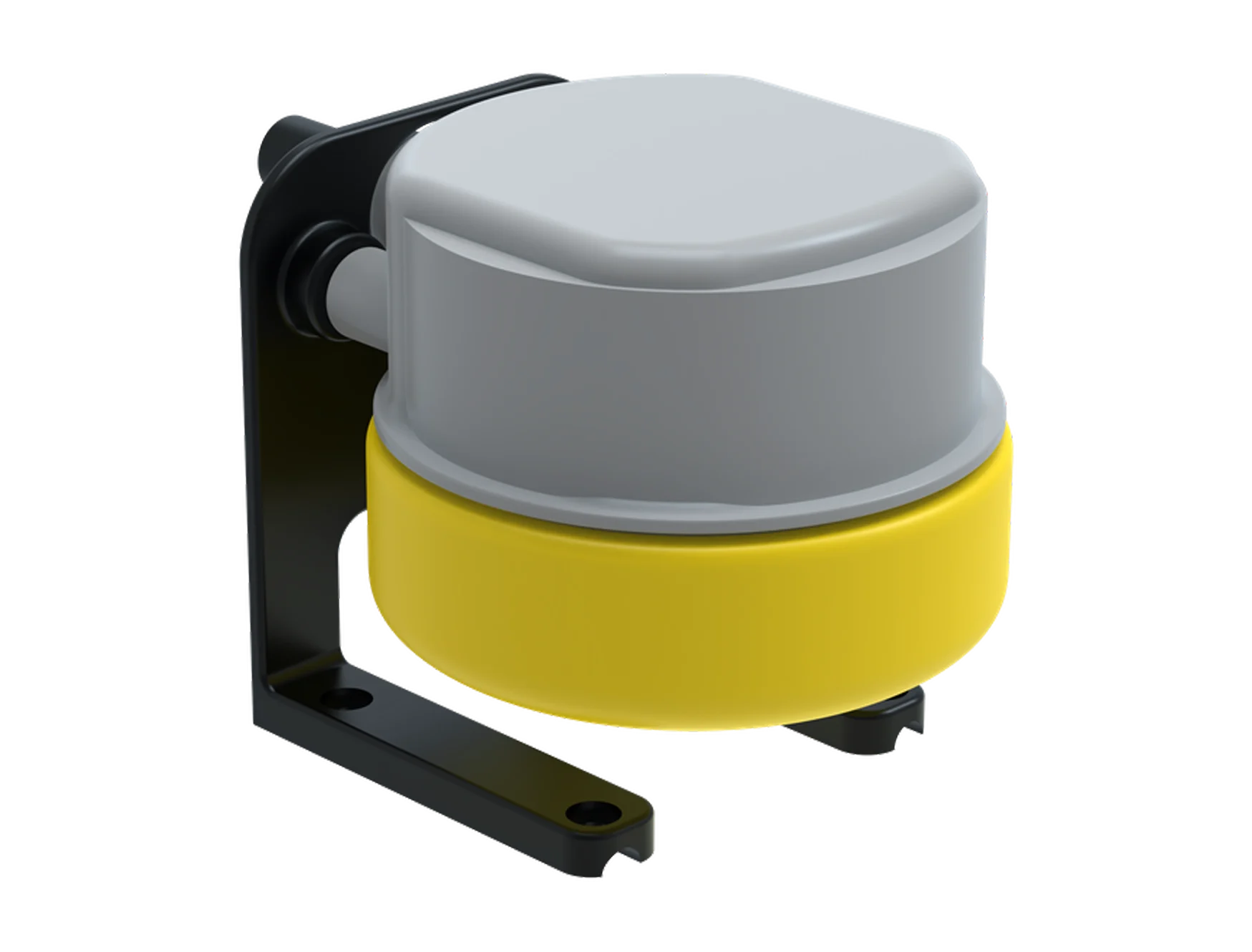

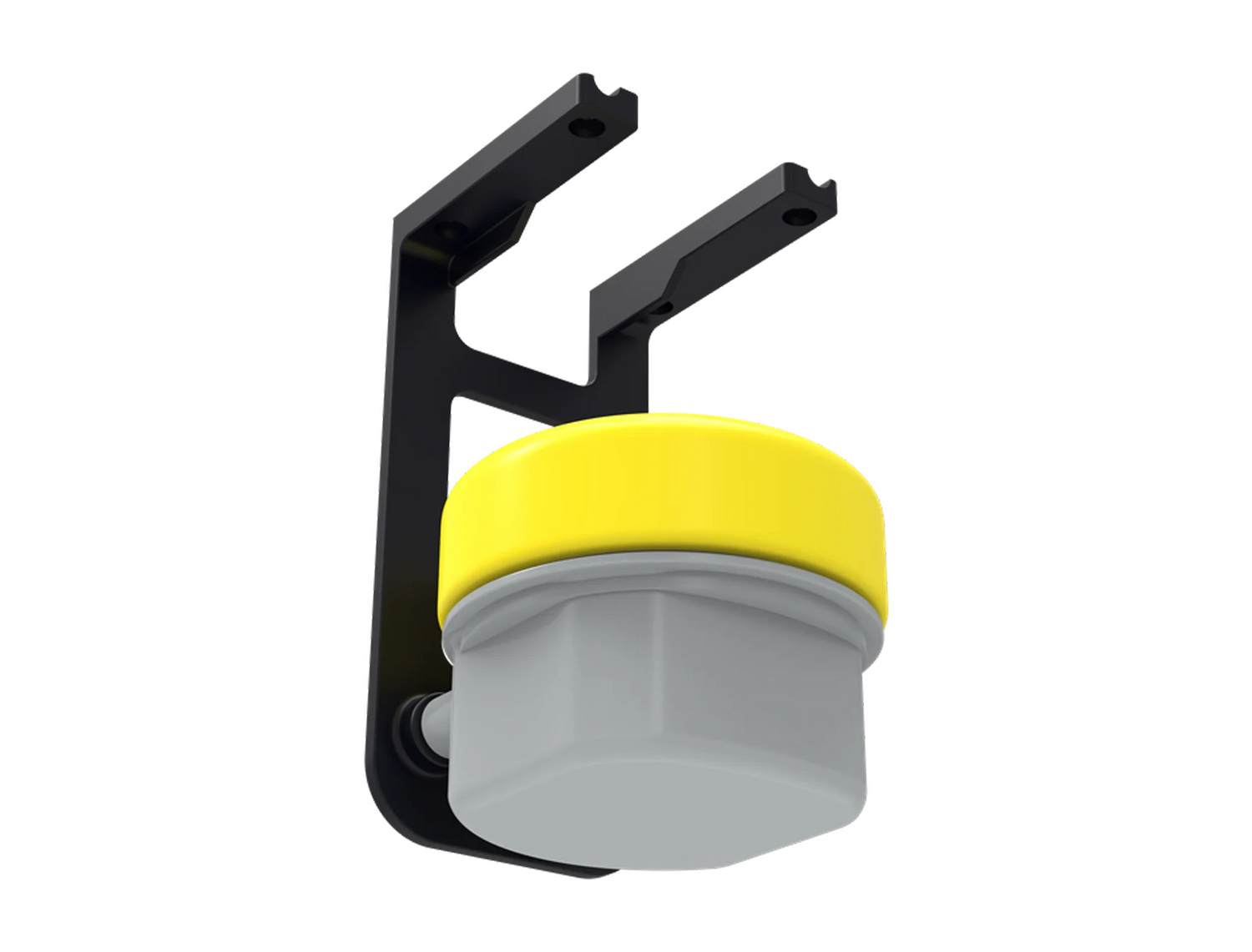

Sonar Installation Base:

  • Default: 64 × 64.8 × 79 mm

  • Optional: 64 × 64.8 × 153 mm

Sonar Installation Base Weight:

  • Default: 54 g

  • Optional: 108 g

Maximum Diving Depth: 150 m

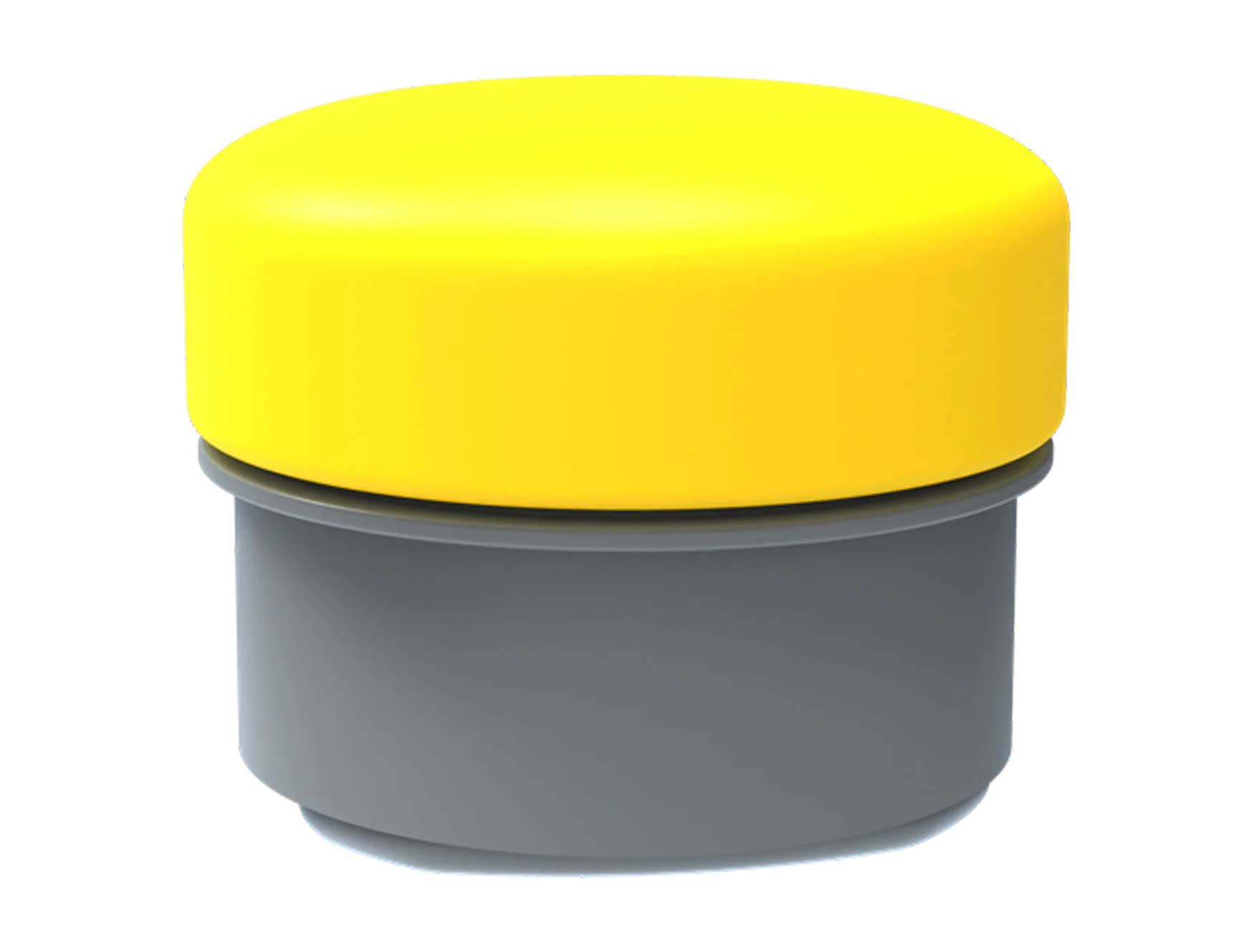

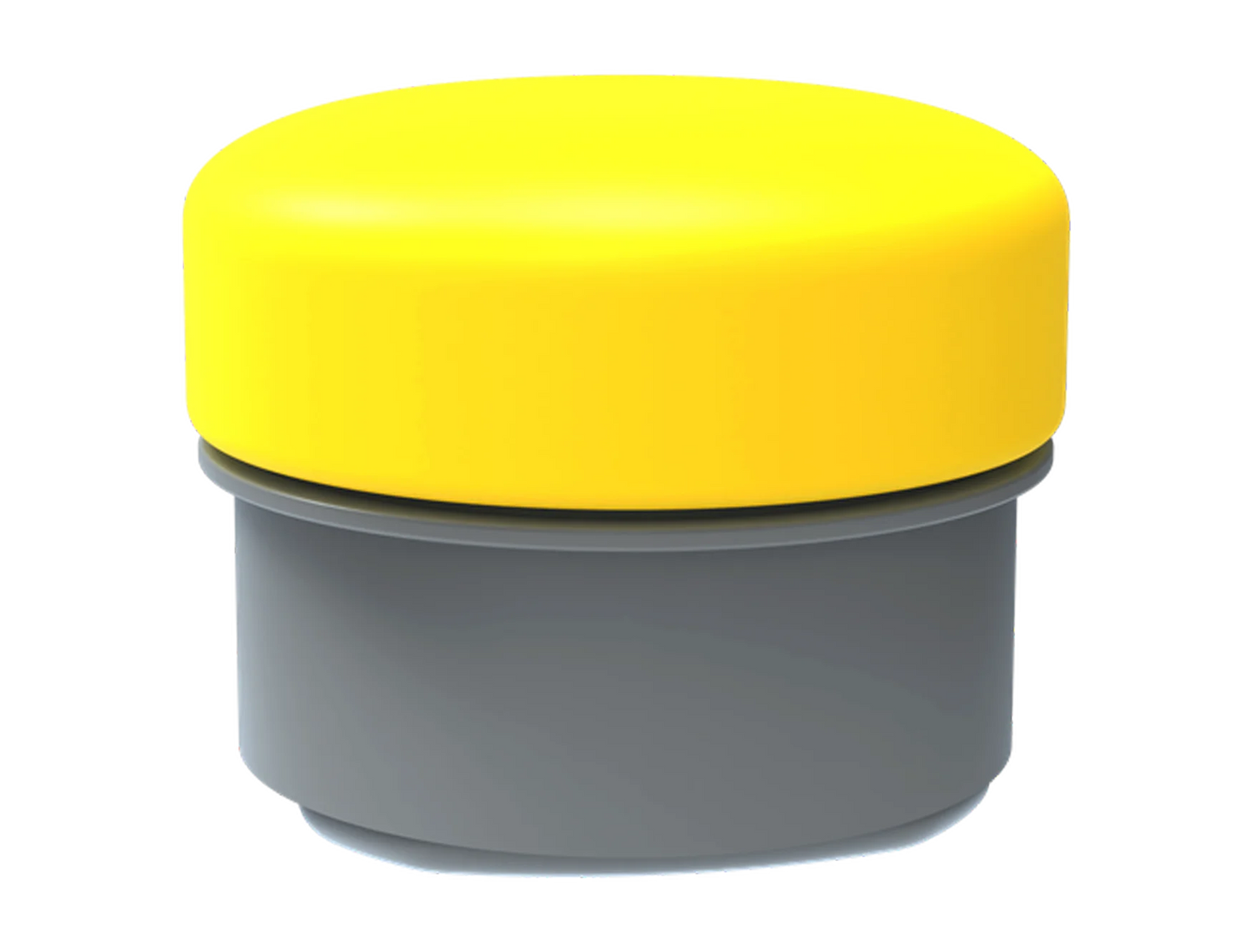

Size of Distance Lock Sonar:

  • Upper cover: 81.3 × 30 mm

  • Housing: 79.3 × 55.9 mm

Weight of Distance Lock Sonar: 286 ± 5 g




You may also like


Column 1

CHASING Distance Lock Sonar

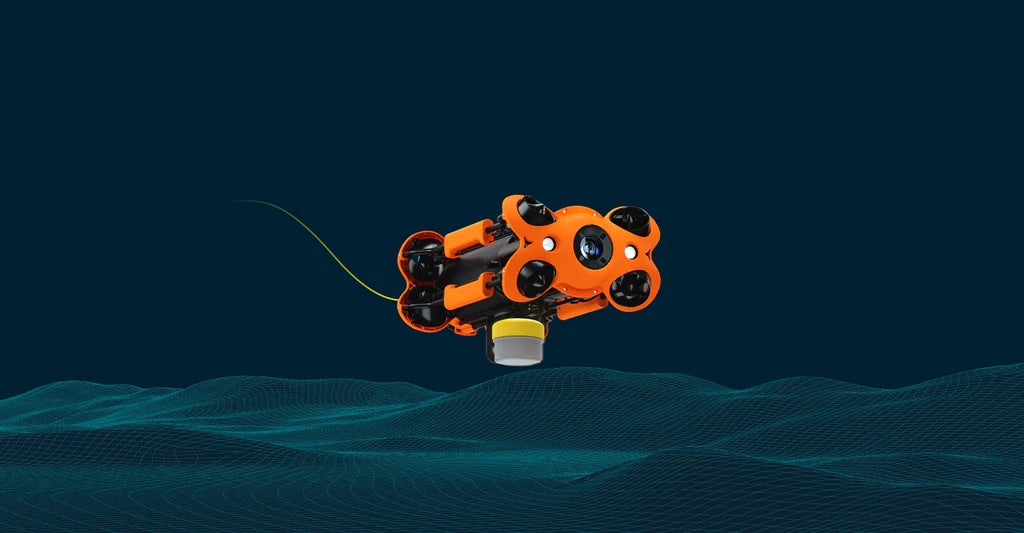

CHASING Distance Lock Sonar is specially designed for the CHASING M2 and CHASING M2 PRO ROV. It enables the ROV to perform lock-distance inspections and automatic collision prevention, making various inspections more accurate and efficient.

Column 2

Lock the Distance in Four Directions Separately

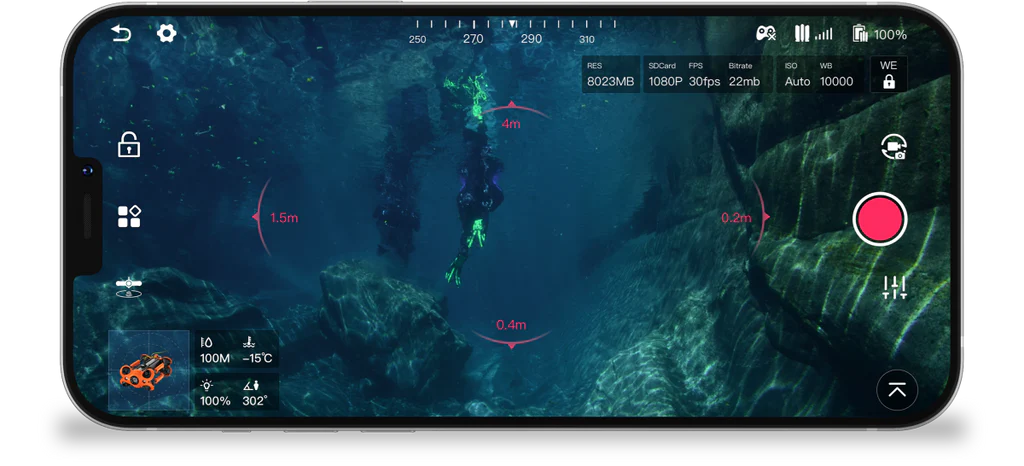

The sonar can automatically calculate the distance between the ROV and obstacles in the front, left, right, and bottom. After setting the distance to the obstacles in the app, the ROV can perform automatic lock-distance inspection and automatic collision avoidance.

Column 3

Efficient Automatic Inspection

In the lock-distance mode, the ROV can automatically inspect from top to bottom around fishing nets or any column-shaped structures. This reduces the difficulty of underwater operations and makes various inspections more accurate and efficient.
